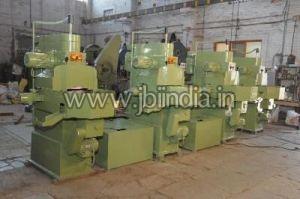

Double Disc Grinding Machine

Double Disc Grinding Machine
Price : INR 7 Lac - 11 Lac / piece
Buy Now

MOQ : 1 piece

Business Type Manufacturer, Exporter, Supplier
Material Cast Iron
Voltage 440V
Weight 1500 Kgs
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Country of Origin
India
Max Job Diameter
Max. 100 mm, Min. 4 mm
Grindable Width
Max. 30 mm, Min. 0.50 mm
Grinding Wheel Size
350 x 110x 52 mm
Power Required
11.75 HP
Max. Error in Parallelism
10 Microns
Max. Error in Flatness
5 Microns
Technical Specification

Double Disc Grinding Machine

Vertical Spindle

DDG 350





Yes! I am interested

Point no 2 and 9 can be varied as per customers requirement

Sr No Aspects Unit Dimension
1 Grinding Wheel Diameter mm 350
2 Gap between grinding wheels mm 1……50
3 Quill adjustment travel, each time mm 50
4 Grinding Wheel Dimensions mm 350 OD x 110 ID x 55 Width
5 Power requirement total kw 8.6
6 Aprox hp 11.75
7 Net weight approx kg 1500
8 Work piece Diameter mm 10…...100
9 Work piece thickness mm 1.50 to 50
10 Maximum error in parallelism mm 0.005
11 Maximum error in Flatness mm 0.005
